Flowmeters Target Low Flow

Aug. 5, 2009

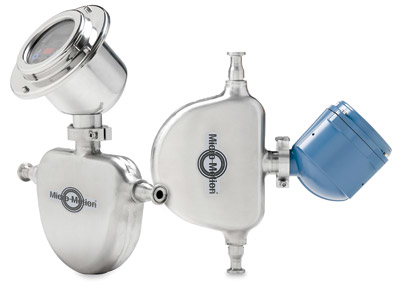

The latest additions to the vendor’s Micro Motion Elite Coriolis meters have been engineered for low flow rate applications.
Two sizes are available—2mm and 4mm nominal diameter—delivering +0.05% liquid flow accuracy, +0.35% gas accuracy, +0.0005g/cc liquid density accuracy for flow rates of 0.07lb/min to 12lb/min (2kg/h to 330kg/h). The meters are less than 2 inches (50mm) wide to fit in tight spaces and weigh just 9lbs (4kg), eliminating the need for special mounting support. Powerful electronics are designed to ensure fast and noise-free signal processing to deliver the best available two-phase flow measurement capability and empty-full-empty batching. For corrosive and high pressure applications, the meters are also available in Nickel Alloy construction and are rated to 6000 psi (413 bar).Emerson Process Managementwww.emersonprocess.com314.553.2000
