Multi-port Touch Panel Computer

May 6, 2009

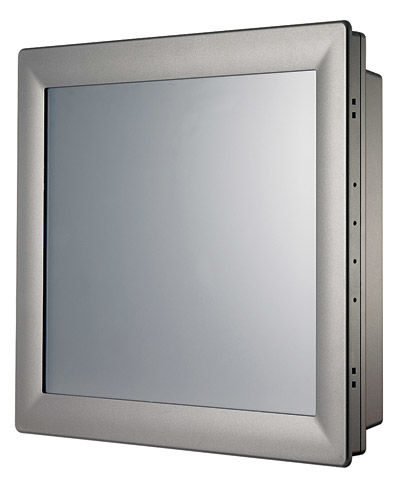

The TPC-1780H is a 17-in SXGA TFT LCD fanless touch panel PC with an Intel Core 2 Duo CPU Touch Panel Computer with 2GB of RAM.
The computer provides one extension slot, such as RS-422/485, PCI-104, CANbus or others to provide data bus extension. There are 3 serial ports, 2 Gigabit Ethernet LANs, 4 USB 2.0 ports, 2 PS/2 and 1 VGA that allow connectivity with a variety of peripherals. The TPC-1780H supports Windows XP, XP Embedded, CE 5.0, and CE.NET. Its slim design (93mm depth) and die-cast aluminum NEMA4/IP65 front panel make it resilient for the harsh conditions of SCADA applications or as an HMI display for machine automation.Advantech Corp. Industrial Automation
