Commission/Troubleshoot Fieldbus Segments

    Jan. 12, 2009

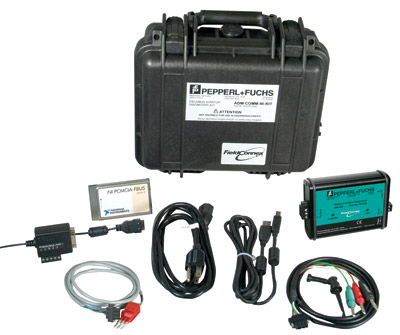

    The Advanced Diagnostic Module Commissioning Kit is a complete diagnostics package assembled in a rugged, portable case designed to enable users to commission, troubleshoot and validate a fieldbus segment, even without a control system.
    Aw 3271 0901 Pprf
    All kit components come pre-wired, and there is no need to wire anything internally in the fieldbox. The standard kit includes a Mobile Advanced Diagnostic Module, 120V mA power supply, 25V fieldbus power supply, 120VAC power cable, USB cable and a fieldbus device cable with clip-on leads. All cables are for external connection only. The Mobile ADM is a comprehensive physical layer measurement tool for Foundation Fieldbus H1 and Profibus PA installations. It provides the exact segment and individual device data needed for analysis of the fieldbus physical layer.Pepperl+Fuchs Inc.www.pepperl-fuchs.com330.486.0002
