Stainless Steel Connection System

The stainless steel version of the BradConnectivity Ultra-Lock Connection System is engineered to meet the stringent sanitary requirements of food, beverage and pharmaceutical manufacturers.

Sep 9th, 2007

Aw 4246 0709np08

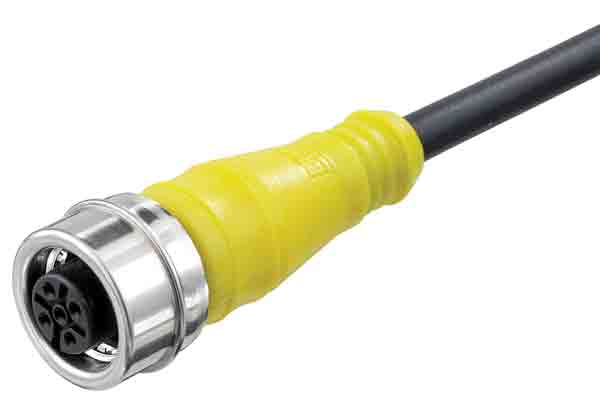

The threadless, M12-compatible Ultra-Lock Connection System is comprised of a series of integrated cord sets, distribution boxes and receptacles built on a patented “push-to-lock” technology designed to enable fast, easy installation without turning the coupler. This positive locking feature, combined with a radial seal, assists in reducing downtime related to failed sensors and other control devices subjected to severe washdown. With sanitary requirements in mind, couplers are made of 316 stainless steel with a smooth surface to help prevent accumulation of bacteria and/or contaminants. The Ultra-Lock O-ring seal is an IP69K-rated radial seal that maintains a constant pressure seal against moisture. The seals have been tested to water pressure of 1200 - 1500psi at close range.

Woodhead Industries, a division of Molex Inc.

www.woodhead.com/ultralockss

800.225.7724
