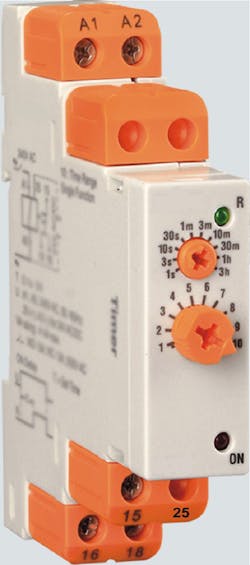

Automatic Timing & Controls, a division of the Marsh Bellofram Group of Companies has introduced the new Model 175SO-110, a highly compact, low-cost, single function ON-delay DIN rail mount industrial timer, designed to provide high-accuracy timing control within OEM and industrial applications, particularly where installation space may be at a premium.
With a low-profile, space saving DIN-rail mounted outer housing design measuring just 17.5 millimeters, the Model 175SO-110 single-mode industrial timer features a 5 amp SPDT relay output contact configuration, LED indication and ten unique user-selectable time ranges that can be selected from 0.1 seconds up to 3 hours. The timers also feature a 110 VAC (50 or 60 Hz) supply voltage. The unit is easily configured for time range and scale setting via its front facing knobs. The Model 175SO-110 is UL also listed and CE certified.
With its compact design and exceptional performance reliability at a relatively low cost, the Automatic Timing & Controls Model 175SO-110 is ideal for OEM equipment, packaging and plastics machinery, industrial equipment control, material handling, conveyor systems control, motor and pump control, and various process industry applications. Units may also be used as lower-profile drop-in replacements for virtually any DIN rail mount 110 VAC ON-delay single-mode industrial timing applications.
