Axiomtek: Multi-Touch 18.5-inch PCAP Panel PC

Dec. 18, 2014

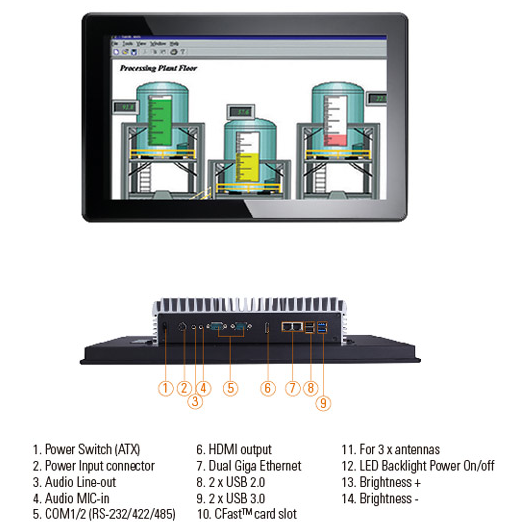

The GOT3187W-881-PCT WXGA fanless computer is powered by a 4th generation Intel Core or Celeron processor.

The panel PC has a wide projected capacitive touchscreen with 300 nits brightness. The panel system ensures reliable operation in harsh environments with a waterproof enclosure (IP65 front bezel). The unit supports 4th generation Intel Core processors (codename: Haswell) with LGA1150 socket and Intel H81 chipset. It offers integrated Intel HD Graphics 4600; connectivity interfaces include two COM ports (2 x RS-232/422/485), two USB 2.0 ports, two USB 3.0 ports and two PCIe Mini Card slots for wireless connection. The touch screen with 7H surface hardness protection provides a barrier against scratches and abrasion, and the unit can withstand 1.2 G of vibration. It is equipped with one 2.5-inch SATA HDD/SSD, one mSATA and one CFast socket for multiple storage options. Mounting options include panel mount, wall mount, VESA arm and desktop stand. It works with both Windows 8.1 and Window 7 operating systems.

>>For more information on this product, click here
Axiomtek
us.axiomtek.com
626.581.3232
