New Built-In Needle Valve Option for Acrylic Flow Meters

Aug. 16, 2013

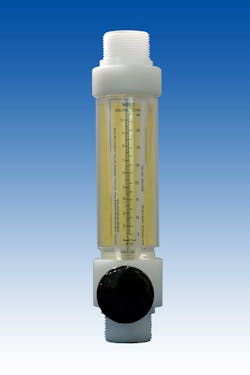

A newly designed multi-turn valve has now been added to Aalborg Instruments’ ACRX Acrylic Flow Meter line.

A newly designed multi-turn valve has now been added to Aalborg Instruments’ ACRX Acrylic Flow Meter line.

ACRX V’s new feature complements existing ACRX meters by eliminating the expense of investing in costly external valves. In addition, ACRX models enable users to perform metering control functions where space is limited.

ACRX V’s valve is installed at the inlet (bottom) of the meter. Alternately, for vacuum service, it is installed at the outlet (top) of the meter.

The unique features of the basic ACRX line also offered in these new models include:

The selection of one interchangeable direct reading scale for Air, Water, Argon, Oxygen, Carbon Dioxide, Nitrogen, Helium or Hydrogen.
Dual scale display flow rates in both metric and English units.
Optional scales that can be developed for diverse flow conditions to facilitate OEM applications.
The yellow colored Back Plate to enhance scale readability and to help minimize eye fatigue.
All ACRX Models are configured for “in-line” ½” female NPT connections.

Maximum Temperature: 130ºF/54ºC
Maximum Pressure: 100 psi/6.89 Bar
Accuracy: ±3% FS
Float and Guide: 316 stainless steel


>>For more information on this product, click here
