Miniature Ultrasonic Sensor

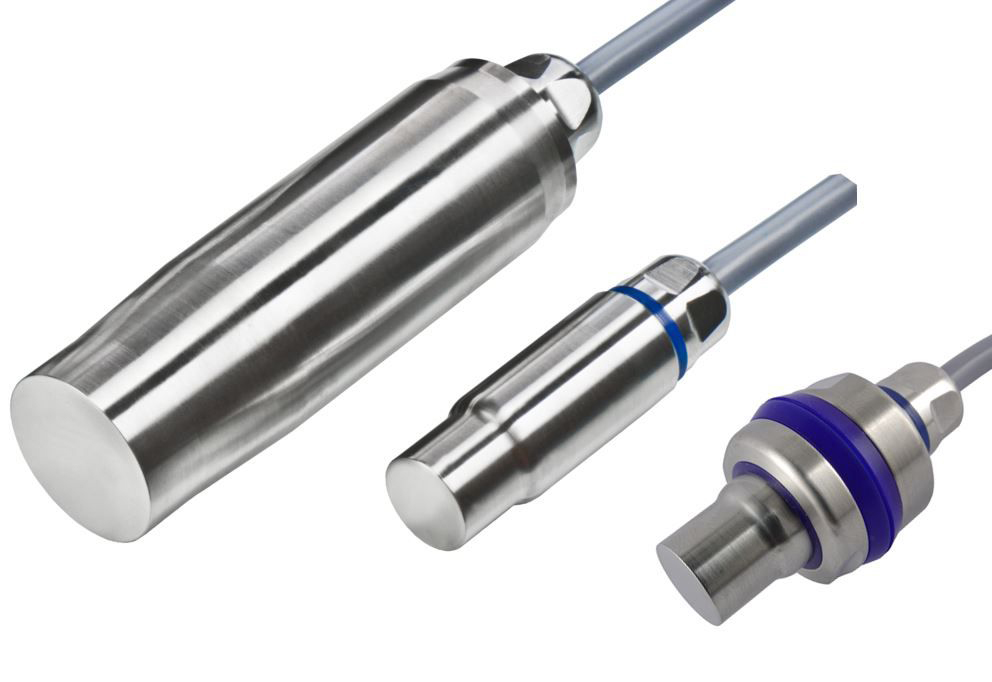

Hoffmann + Krippner’s P53-80-D18 compact (45 mm long and 18 mm diameter) ultrasonic sensor is for use in harsh environmental conditions as well as in hygienic applications.

Miniature Ultrasonic Sensor from Hoffmann + Krippner
Miniature Ultrasonic Sensor from Hoffmann + Krippner

With a housing made of V4A stainless steel (1.4404) with a roughness depth of 0.6?m, the unit is well suited for use in harsh environments such as dust, moisture and water vapor. As the sensor and its mounting assembly can be sanitized with strong cleaning materials, its real world applications include manufacturing, food and chemical processing, medical, agriculture, packaging, etc. It can be used for a variety of distance measurements as well as level measurement, presence detection, detection of moving objects, counting objects and checking for completeness. Sensing range is up to 800 mm, and maximum temperature is 80 °C (176 ºF). The EHEDG certified model is equipped with an integrated cable screw connection, ensuring best hygiene for food and beverage as well as bottling and packing industries. The industrial model includes a M12 connector with power supply, signal output and teach in. It can be mounted with two Teflon nuts that provide acoustic decoupling. The sensor can be configured via the M12 connector cable. In addition, optional external hold/sync switches are available.

>>For more information on this product, click here
Hoffmann + Krippner, Inc.
www.hoffmann-krippner.com/
770.487.1950
