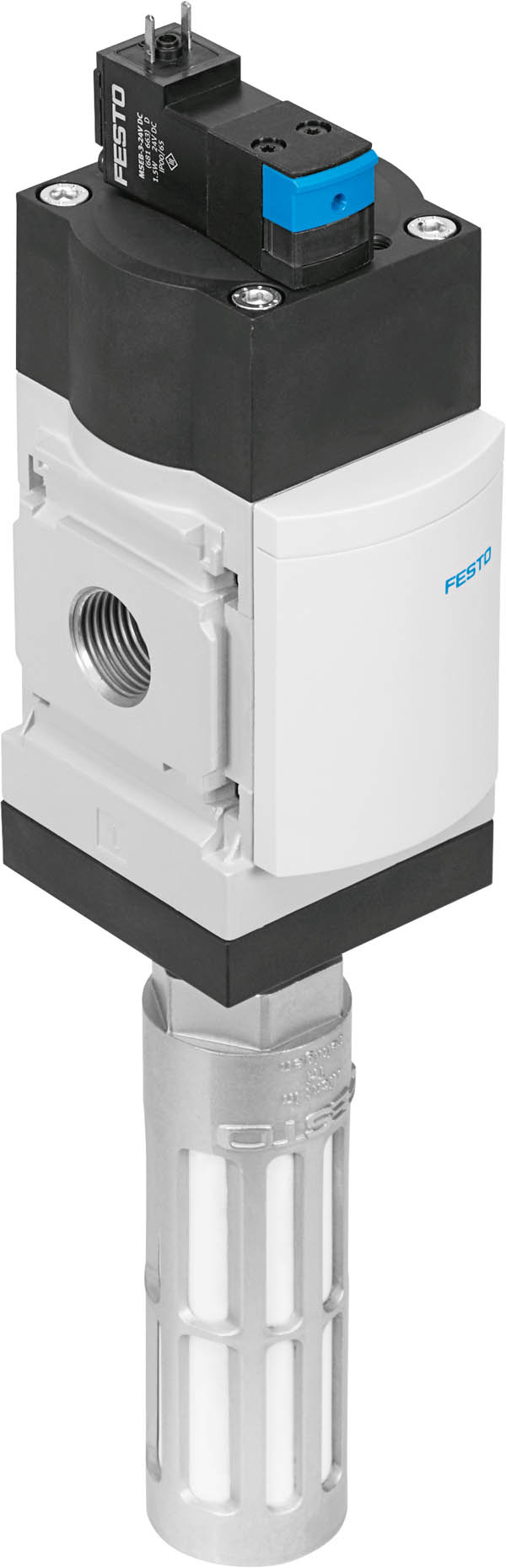

The MS6-SV is available in performance level C and E units; the MS9-SV is available in a performance level C unit. Both have exhaust functions in a compact unified body. The MS6-SV-E series is certified to the DIN ISO 13849-1 safety standard–category 4—an exhaust rate of 9,000 l/min from P2 to P3. The valve delivers continuous testing and sensing of the safety function. The MS6-SV-E-ASIS valve option has an integrated network connection to AS-Interface Safety at Work, which eliminates the need for an additional safety relay. The ASIS valve option includes switching status sensing and diagnostic functions. The input and output pressures P1 and P2 are internally monitored and can be read via the AS-Interface bus.
More information on the MS6-SV and MS9-SV.
