High-output Power Supplies

May 4, 2010

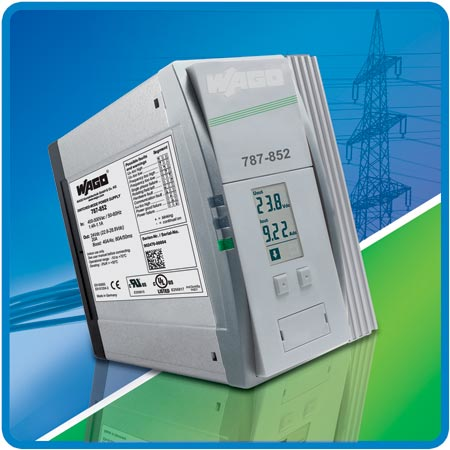

787 Series PRO Power Supplies process peaks in systems with high-output requirements.
The six-model line of three-phase power supplies offers a wide input voltage range, 24VDC output and 10A, 20A or 40A rated nominal output. In short-circuit conditions, a TopBoost function provides 60A of additional 50ms reserve for tripping of miniature circuit breakers. A PowerBoost function offers up to 200% of rated current for up to four seconds to assist power-up of heavy loads. Line Monitor (select models) incorporates an LCD/key pad and RS232 interface with free software for monitoring and configuration of signal outputs and overcurrent behavior. Monitoring from the LCD and software via RS232 interface eliminates components such as volt/amp meters, phase monitoring devices and operational hour meters. On-unit LEDs indicate errors and an optional LCD screen provides current, voltage-output and line-monitoring information.Wago Corp.www.wago.us800.346.7245
