PEEK-bodied 12mm pH Sensors

Dec. 1, 2009

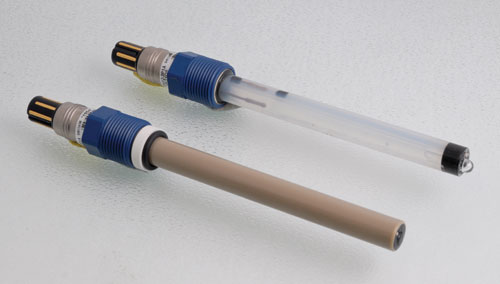

The new Foxboro brand PH12 Series is a family of high-performance, disposable pH sensors in the widely used 12mm form factor that includes the process industry’s first polyetheretherketone (PEEK) bodied sensor, making it the most durable 12mm pH sensor available anywhere, according to the vendor.
The PH12 family of electrochemical sensors also features advanced diagnostics, fast response, long life and high accuracy and stability. The PH12 sensor family is available in the PEEK or a glass body, either of which is available with a high-performing flat, ruggedized glass pH electrode or a domed pH electrode. Temperature performance range is from -15°C up to 125°C. A Nafion ion barrier in all PH12 family sensors protects the reference junction and a built-in, non-metallic (Kynar) solution ground, is designed to enable highly cost effective sensor diagnostics.Invensys Operations Managementwww.iom.invensys.com888.869.0059
