Improved Performance Temperature Transmitters

Aug. 5, 2009

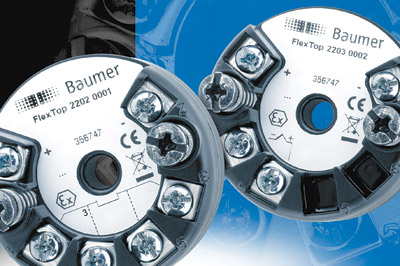

As replacements for the vendor’s FlexTop 2201, the FlexTop 2202, 2203 and 2204 comprise a family of cost-efficient temperature transmitters that can be configured with different input signals and have an improved output performance.
FlexTop 2202 is a digital temperature transmitter for a measuring range of -200°C to 850°C. The input can be set up with a Pt100 resistance thermometer, a resistance sensor or a potentiometer (each with 0 to 500 Ohm). The accuracy is better than 0.25°C. For the FlexTop 2203, the input can be a thermocouple (sensor types B, J, K and S) or a 0-100mV signal. Depending on the sensor type, the accuracy is between 2°C and 3°C. The temperature transmitter is suitable for a measuring range of -250°C to 1820°C. It offers internal, external and fixed cold-junction compensation (CJC). The FlexTop 2204 accepts a Pt500 resistance thermometer, a resistance sensor or a potentiometer (each with 0 to 1000 Ohm) as input. It is suitable for a measuring range of -100°C to 160°C.Baumer Process Instrumentationwww.baumerprocess.com+45.(0)89.31.76.11
