Small Form Factor Industrial IoT Gateway

June 11, 2019

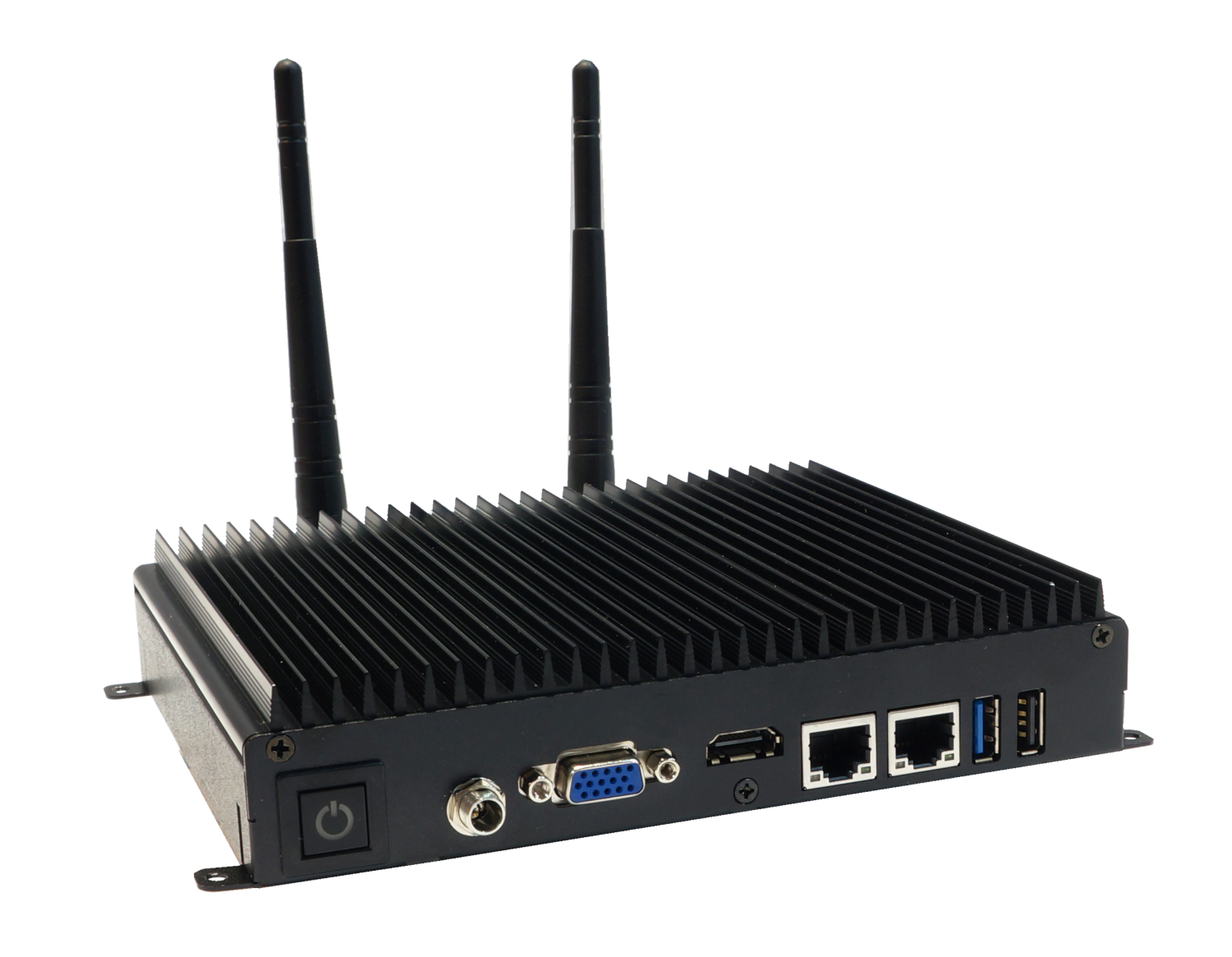

The fanless PL-80580 From WIN Enterprises is for use as an Industrial IoT (IIoT) gateway, and for networking applications requiring a small footprint and industrial temperature tolerance.

The unit’s small footprint — 216 x 142 x 37.5 mm — also provides a good fit for robotics, cart-based medical, and digital signage applications. It features a choice of three Intel Atom E3800 3-D processors with Tri-gate design in single-, dual, and quad-core versions with 2x GbE LAN ports. The processor is high performance, low-power consuming at 5, 7, or 10 W. The E3845 SoC provides up to 1.91 GHz performance with its quad-core design. CPUs are partnered with the Intel i210AT GbE LAN controller. System I/O includes 1x USB 3.0, 2x USB 2.0, 2x Intel PCIe GbE, and 1x RS-232/422/485 and 3x RS-232, plus expansion capabilities. The unit is RoHS, FCC, and CE compliant, and operating temperature range is -10 to 60 ºC (14 to 1409 ºF).The company will customize the unit based on users’ specific requirements.

>>For more information on this product, click here
WIN Enterprises, Inc.
www.win-ent.com
978. 688.4884
