Molex: Heavy Duty Connectors for Industrial Automation

GWconnect Heavy Duty Connectors provide exceptional mechanical strength and vibration resistance in power, control and signal circuits.

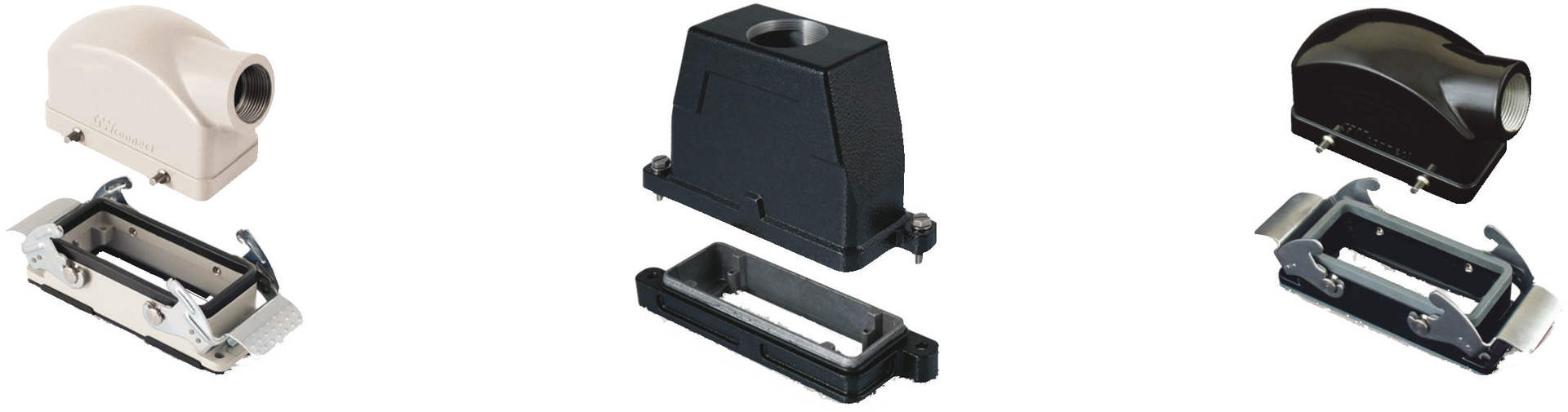

Aw 68556 1505np Molex

The UL/CSA-approved connectors are rated to IP66, IP67 or IP69K (EN 60529) for applications exposed to harsh substances or requiring frequent washdown. Applications may include control panels, robotics, industrial automation, food and beverage, in addition to railway, commercial vehicle and renewable energy equipment. Constructed of die-cast aluminum alloy with a polyester powder coating, connectors are available with a range of enclosure materials and options. Inserts constructed of self-extinguishing UL 94V-0 thermoplastic material are available with screw terminals, screw terminals with terminal block, spring terminals, crimp terminals and push-in terminals. Special sealing gaskets protect the inserts against dust, water and chemical agents. Turned contacts are made of hard silver or gold coated copper alloy, ensuring high reliability and performance. A complete range of stamped crimp contacts, supplied on reel, is also available for automated crimping. The connectors also feature a lever locking system to resist impact and prevent accidental unmating.

>>For more information on this product, click here
Molex Inc.
www.molex.com
800.786.6539
