Modular Cable Entry System Updated

June 11, 2019

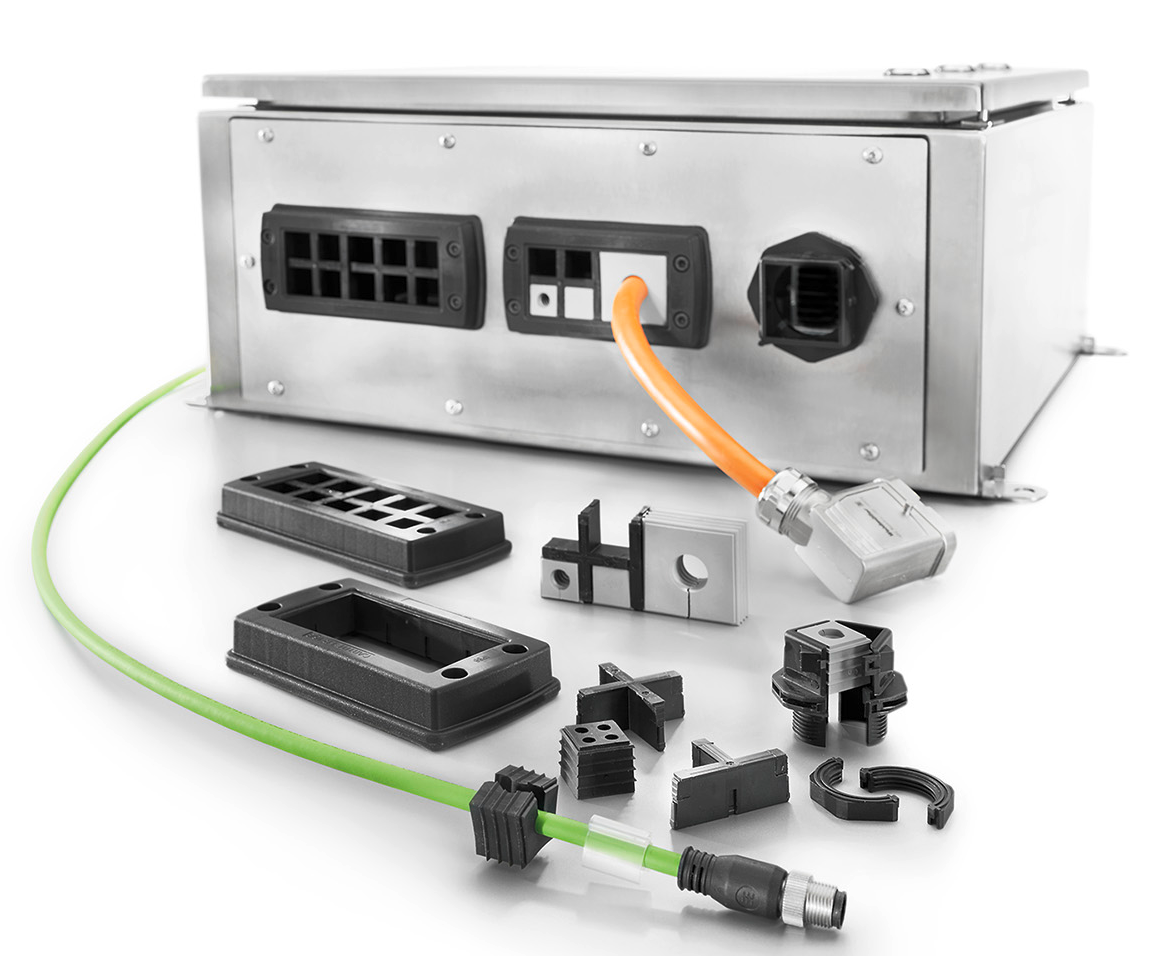

The new Cabtite Cable Entry System from Weidmuller is for pre-assembled cables and cables without plugs.

It replaces an earlier version and offers increased flexibility in the cable management of control cabinets and OEM equipment in manufacturing environments, helping to speed up installation, facilitate service and minimize downtime. The system features a modular design that includes three basic components: a frame, snap-in inlays and sealing grommets. The frame is made from fiberglass reinforced plastic and is available in four different sizes. An optional internal locking frame is available for added tamper proof protection. The one-piece frame is configurable when using the snap-in inlays which provide an easy, configurable method to generate small to large entry points with sealing grommets of various sizes (full range: 0.06 to 1.4 inches dia.). This allows a number of configurations to accommodate a wide range of sizes for cables, conductors, hoses, pneumatic and hydraulic lines. Two conical-shaped sealing grommets (large/small) are available to reduce grommet complexity as the two grommets cover a cable range of 0.08 to 7.4 inch diameter and provide a reliable self-forming seal for a variety of cable diameters and shapes. The frames and accessories securely seal pre-assembled and unassembled cables with grommet seals that meet IP66 and NEMA 4 – 12 protection, and integrated strain relief in accordance with DIN EN 62444. The cable entry system has an operating temperature range of -40 to 248 ?F (-40 to +120 ?C).
