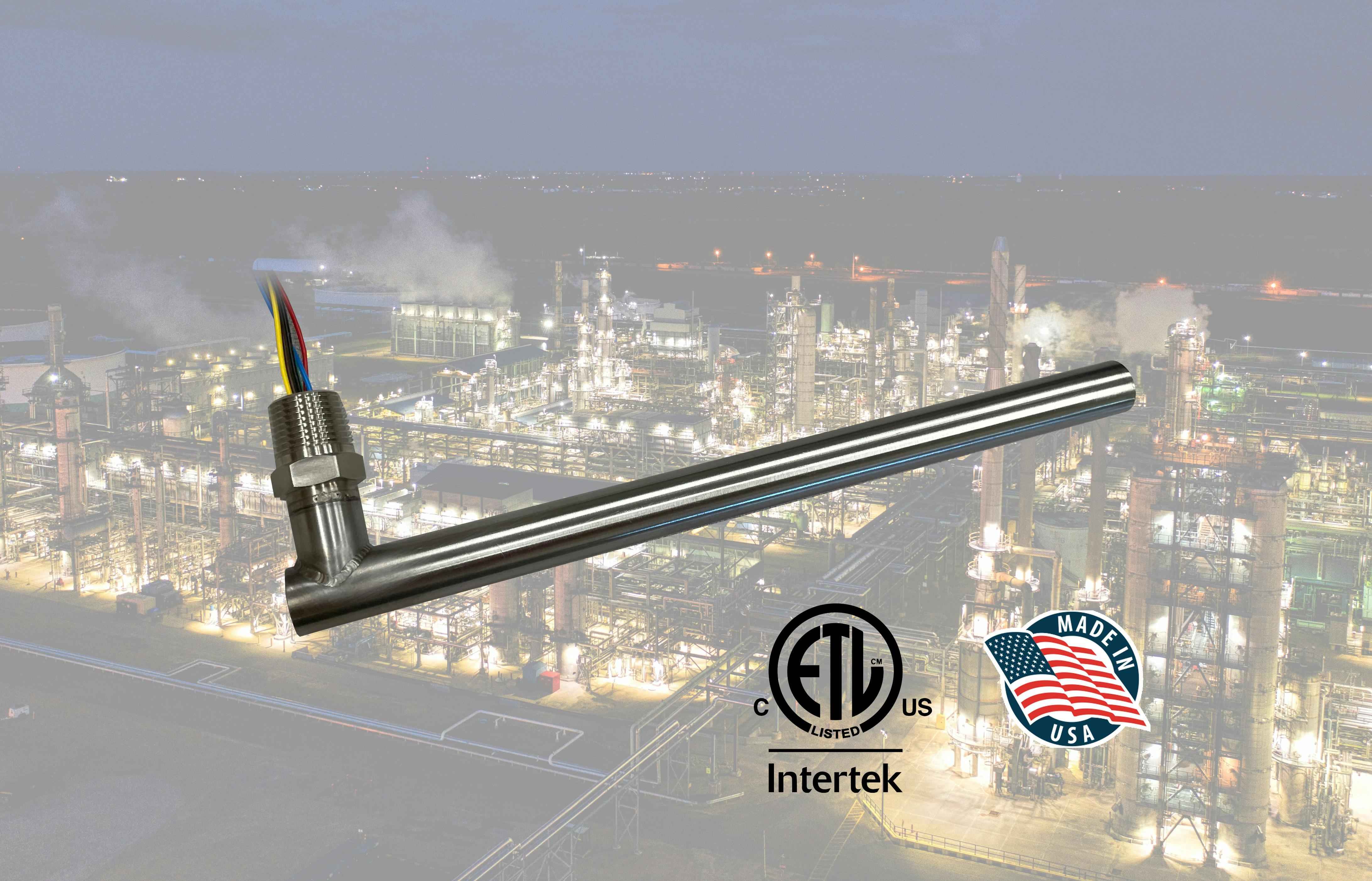

NewTek’s NT-HL-750 LVDTs are linear position sensors certified for safe operation in hazardous locations with explosive gases, vapors, dust and other dangerous substances. Approved by Intertek Testing Laboratories and carrying the ETL mark, these LVDTs are intrinsically safe for use in Class I, Zone 0 and Zone 2 areas. Constructed with stainless-steel and featuring a welded ¾-in. hermetically sealed housing, these sensors are rugged, robust and resistant to shock and vibration. The NT-HL-750 LVDTs can measure from +1.0 to +10 inches and operate effectively in temperature ranges from -65°F to 275°F. They are available with either radially or axially mounted connectors, and electrical connections are made via lead wires exiting from a 1/20-in. NPT fitting.
