Fanless Ultra Compact Embedded System for Edge Computing

Nov. 20, 2019

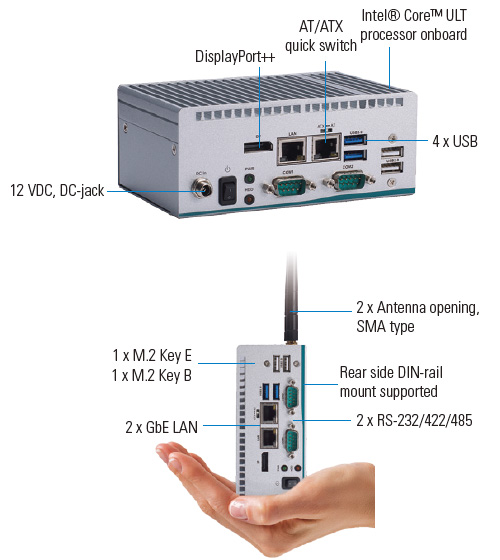

The ultra-compact eBOX100-51R-FL from Axiomtek is powered by the high-performance Intel Core i5-7300U or Intel Celeron 3965U processor.

Weighing just 600 grams, the unit shares the features of the company’s eBOX100 series — ultra-slim form factor, rugged design, and rich I/O connectivity — that provide flexibility and a wide range of application in edge computing, IIoT gateway and extended fields. The front-facing I/O connectivity design provides convenient access for easy installation and maintenance. The system comes with one DDR4-2133 SO-DIMM slot with system memory up to 16 GB, two RS-232/422/485 ports, two USB 3.0 ports, two USB 2.0 ports, two Gigabit Ethernet ports, one DisplayPort++, one AT/ATX quick switch, one screw-type 12VDC power input connector, and two SMA type antenna openings. In addition, it is equipped with one M.2 Key E 2230 slot for Wi-Fi and one M.2 Key B 2242 for SATA storage. Mounting options include wall, VESA and DIN rail, and the aluminum extrusion and steel case is rated IP40-rated, with operating temperature range of -10 to 50 °C and vibration endurance for up to 3G. It has passed the strict certification with CE and FCC Class A.

>>For more information on this product, click here

Axiomtek
us.axiomtek.com
626.581.3232
