100GigE Camera

Aug. 18, 2023

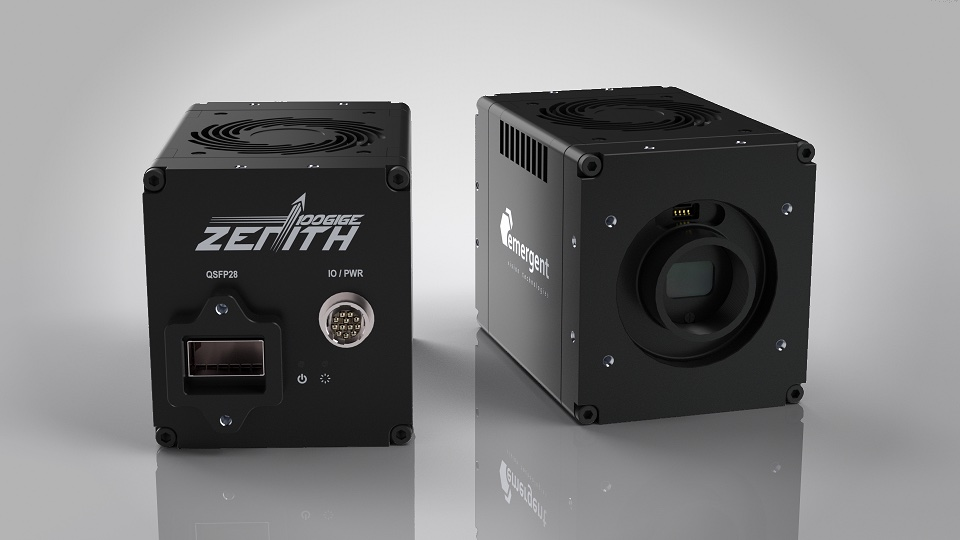

The Zenith HZ-2000-G 100GigE Camera from Emergent Vision Technologies has a QSFP28 interface and allows end users to reach 3462fps in 8-bit mode and 1782fps in 10-bit mode. The 2.5mp area scan camera is available in both monochrome and color versions and offers a GSPrint4502 CMOS image sensor with a 4.5 x 4.5μm pixel cell size and 2048 x 1216 resolution. The 100GigE interface also features low CPU overhead, low latency, low jitter, multi-camera synchronization using IEEE 1588, and is both GigE and GenICam compliant, allowing cable lengths from 1m up to 10km. Emergent also offers 50GigE, 25GigE and 10GigE area scan camera options, as well as its own line of network interface cards.
