10/100BaseTX to 100BaseFX Fiber Media Converters

June 1, 2011

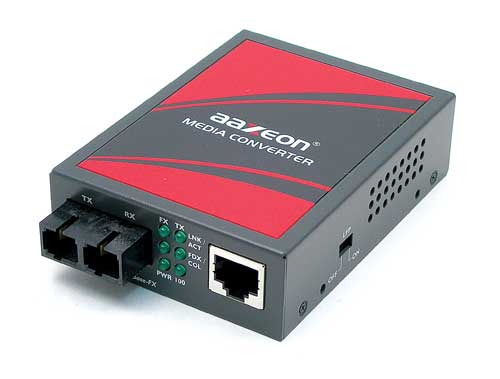

FCU-1802 is a fast Ethernet bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter.

It features a DIP switch to select between half-duplex and full-duplex operations, and auto-adapts to the highest level of performance supported by the connected device. For example, when the device is a switch or a workstation that supports full duplex, the FCU-1802 adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts and provides the nominal 100Mbps bandwidth. An override switch provides total manual control in a fiber-optic interface. The fiber port operates at 1310 nm and uses ST, SC, or WDM connectors. Multi-mode models that support distances up to 2 km and single-mode models that support distances up to 30 km are available. The FCU-1802 series includes a LFP (Link Fault Pass Through function) (LLCF/LLR) and DIP Switch design.

Aaxeon Technologies, LLC
www.aaxeon.com
714.671.9000
