Download Product CAD Drawings

May 13, 2011
The vendor has made 3D CAD drawings for its automation and control products available to OEMs and end-users for free on its Web site.

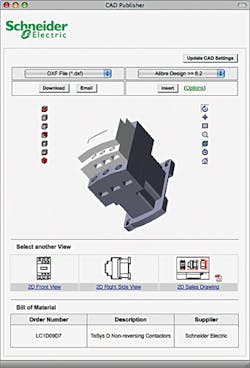

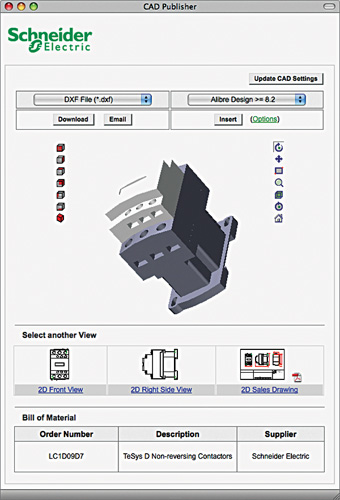

This enables customers to easily access and search the catalog directly from the Web site and download the drawings into their designs, allowing shorter design time and faster time to market. The catalog delivers advanced 2D and 3D viewing technology enabling users to pan, zoom and rotate (3D), and provides engineers with access to the detailed information they need to specify the vendor’s products. The catalog also enables customers to insert CAD files from the Web site directly into their CAD systems—no matter which CAD software they use, according to the vendor.

Schneider Electric
