Axiomtek: Network Appliance

June 30, 2014

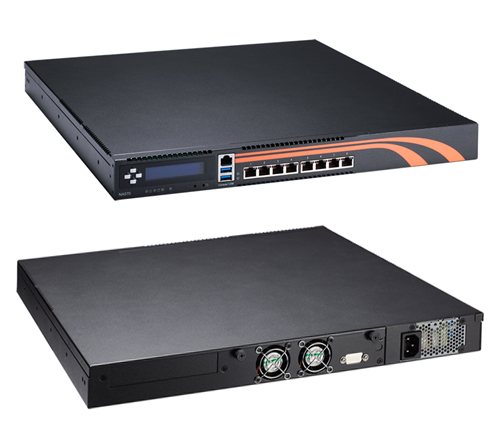

The NA570 supports the 4th Generation Intel Core i processors, allowing developers to configure their network solutions based on performance requirements.

Through the PCIe 3.0, the unit can integrate up to 24 Gigabit Ethernet ports or up to four ports at 10 GbE. The standard unit comes with eight Gigabit Ethernet ports using Intel i210AT controller and supports two groups of LAN bypass segments. Four DDR3 1600 MHz DIMM sockets can provide storage of up to 32 GB and support both ECC and non-ECC memory types. To enhance reliability, the SMB platform supports data protection via two pairs of latch-type LAN bypass functions for fail-over option and features BIOS console redirection. The network appliance platform is suitable for a variety of applications including VPN, firewall and security applications, network bandwidth controller, WAN accelerator and surveillance system. The appliance features two internal 2.5-inch SATA hard drives and one CompactFlash socket for storing event logs. In order to address the various network application needs, the appliance also features one console port, two USB 2.0 ports and a VGA port. There is a front-facing LCD module activity indicator for convenient monitoring of power and HDD activity. The system also supports mainstream Linux operating systems.

>>For more information on this product, click here


Axiomtek
us.axiomtek.com
626.581.3232
