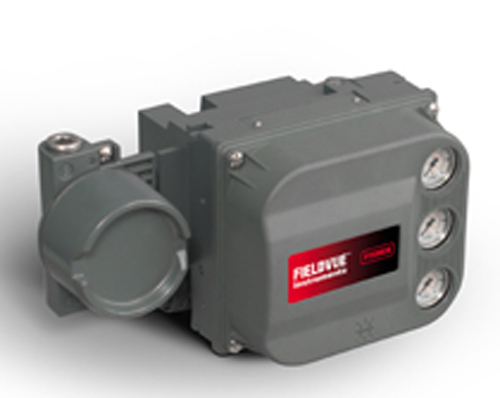

Emerson’s Fisher FIELDVUE DVC6200 digital valve controller series now incorporates a 4-20mA position transmitter that can also be configured as a discrete switch. Having the valve position transmitter function integrated within the valve controller means that the expense, bracketry, and maintenance requirements of an add-on, accessory transmitter are eliminated.
The discrete switch is a solid state circuit (1-amp maximum) that opens and closes based on a user configurable trip point. The trip point can be based on valve travel anywhere within the calibrated travel range or on a device alert.
The position transmitter is independent from the digital valve controller with the power coming from the control system analog input channel in the same manner as a standard 2-wire transmitter.
The DVC6200 communicates with the latest HART 7 standard. It may also be field configured to the earlier HART 5 standard to match any control system requirement.
With over one million units installed worldwide, FIELDVUE digital valve controllers prove highly suited to a wide variety of industries and applications where they provide unmatched valve operation. The DVC6200 series is offered with CSA, IECEx, and FM hazardous area approvals as well as other certifications/approvals. It is also listed in the Lloyd’s Register for industrial, marine and offshore use.
