Provide Exact Dosing Quantities

Dec. 1, 2009

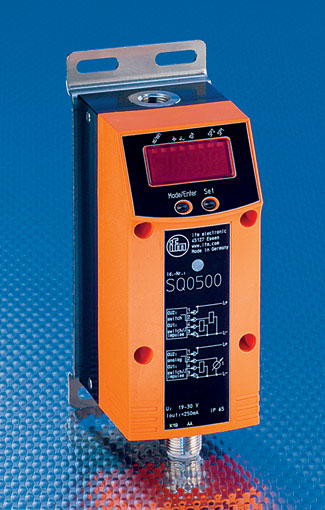

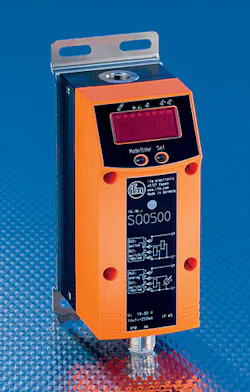

The SQ Series Flow Meter is designed to deposit small dosing quantities in water and aqueous solutions up to 200 ml/min.
An internal measuring pipe provides exact dosing quantities and is protected against mechanical strain and external influences. The SQ flow meter features a 4-digit numeric display with simple pushbutton set-up that establishes application parameters. The meter indicates flow rate, process temperature and features a totalizer function. Various outputs include switching, pulse and analog (4-20 mA). With technology based on the calorimetric flow-sensing principle the SQ flow meter offers high accuracy with a response time of less than 0.15 seconds and a repeatability of ±0.2%. The meter features 316 stainless steel wetted parts and G-1/8 process connection, with electrical connection through an M12 connector. List price is $495.ifm efector inc.www.ifmefector.com800.441.8246
