Password-protected Paddle-wheel Flowmeters

Dec. 1, 2009

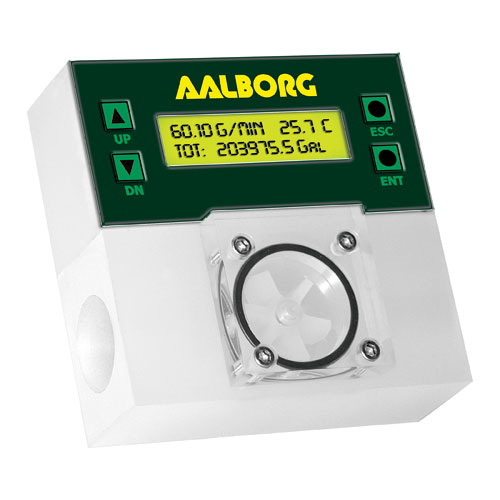

Multi-parameter PWE enhanced digital paddle-wheel flowmeters are designed to offer cost-effective solutions to medium-flow liquid applications.
The units provide password-protected access to process parameters, thus eliminating user tampering or resetting. Flow rates can be displayed in 23 different volumetric or mass flow engineering units. In addition, flow-meter parameters and functions can be programmed locally via optional key pad and LCD or remotely via RS-232/RS-485 interface. PWE supports functions including two independently programmable flow totalizers, self-diagnostic alarm, flow pulse output, and analog 0-5VDC or 4-20mA output flow and temperature signals. Flow metering accuracy is ±1% FS and temperature accuracy is ±0.5ºC.Aalborg Instruments & Controls Inc.www.Aalborg.com845.770.3000
