Smart Echo Processing Level Transmitter

June 6, 2008

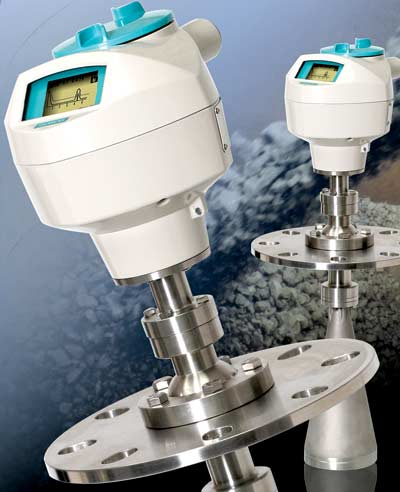

The Sitrans LR260 is a two-wire radar continuous level transmitter featuring Process Intelligence echo processing and 25GHz pulse technology.
Designed for level measurement of virtually any solid medium, the LR260 reliably measures up to a distance of 98 feet, even in environments with extreme dust load and high temperatures up to 392°F (200°C), says the vendor. The transmitter can be programmed via the infrared handheld programmer or remotely using Simatic PDM via Hart or Profibus PA without opening the lid of the device, thus preventing exposure of the electronics to dirty environments. A new graphical local user interface (LUI) displays echo profiles and diagnostic information. The transmitter includes self-diagnostics that communicate to the local display and across the mA loop or network. A new “Process Intelligence” signal processing evaluates dynamic echo signals. It applies algorithms—based on field data collected from more than 1 million level measurement applications—to raw echoes, to produce accurate and reliable level measurement readings.Siemens Energy & Automation Inc.www.usa.siemens.com800.743.6367
