Rugged Mini Connectors

Sept. 1, 2004

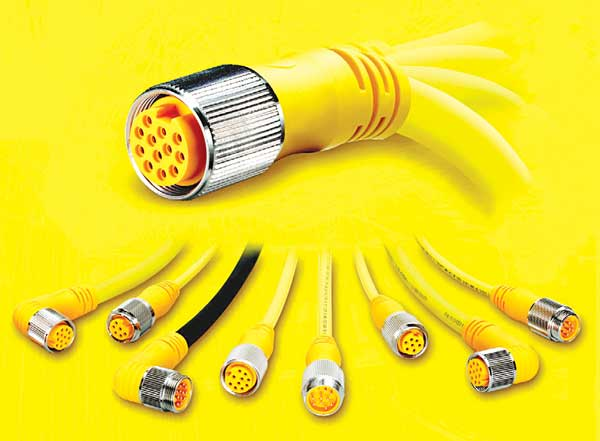

The minifast B and C size cordsets are rugged, industry standard connectors built to meet the SAE H1738-2 specification. The B size minifast connectors offers a 6-, 7- or 8-pin connection and the C size offers a 9-, 10- or 12-pin connection.

The 2 mm pins and spring style contacts offer exceptional current ratings, says the vendor. Paired with 16 AWG cable (18 AWG available), the 6-pin minifast offers a full 9A of current carrying capability and the 12-pin minifast can handle 6A. All connectors are rated for 600V. The extended coupling nut design provides pull strength of more than 200 pounds. Coupling nuts are available in nickel-plated brass or 316 stainless steel. Equipped with a large over molded plug body with built-in strain relief, the minifast product line is rated to NEMA 1, 3, 4, 6P and IEC IP 68.
