EVT Eye Vision Technology GmbH
: Multifunction-PLC I/O-Module

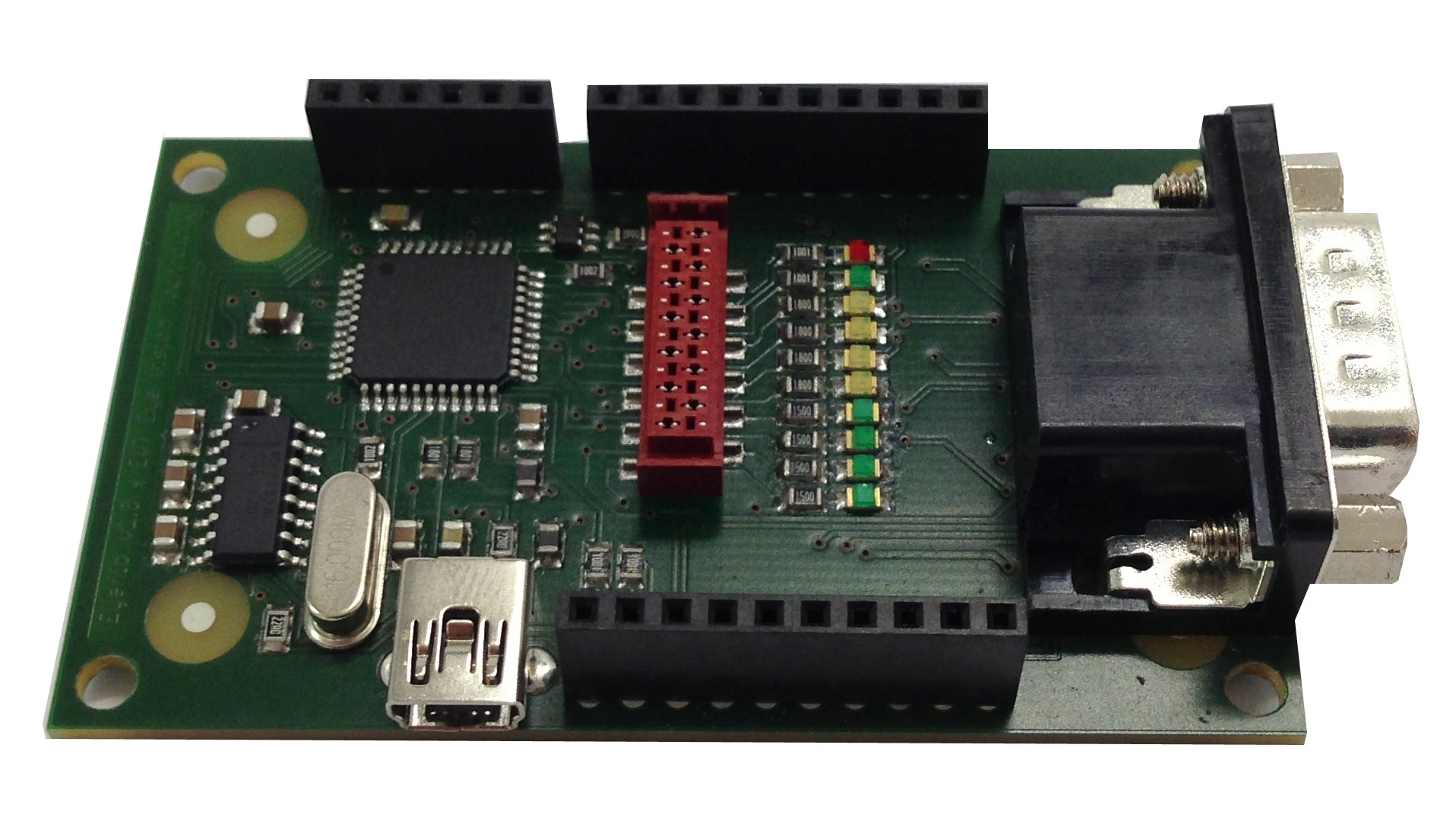

The EyeMIO is a USB-Interface for industrial applications that works with the company's image processing systems by EVT to control the peripherals and act as the physical interface between the image processing system and the production line.
Related To:
April 30, 2013
Aw 15661 1304np Evt

The unit offers several standardized interfaces, such as a USB 2.0 and an RS-232 serial interface, as well as four digital inputs and four digital outputs, each with indicator LED, as well as digital inputs and outputs, each with indicator LED. Additional communication is provided by a two-wire serial interface (I²C) and a one-wire interface. The module also features a built in temperature sensor, which is especially useful in industrial environments, as well as four status LEDs. The EyeVision image processing software offers provides the complete command set for vision applications such as measurement, object detection, pattern matching or code-reading. An example is the newly revised bar code reader function, which is not only a powerful tool but also easy to handle. With drag-and-drop operation no programming skills are necessary to create an inspection program - the user just drags the command icon and drops it in the program editor of the software and the system is ready for action.

>>For more information on this product, click here
