Universal Flow Monitors, Inc
: Vortex Shedding Flowmeter with Intrinsic Safety Option

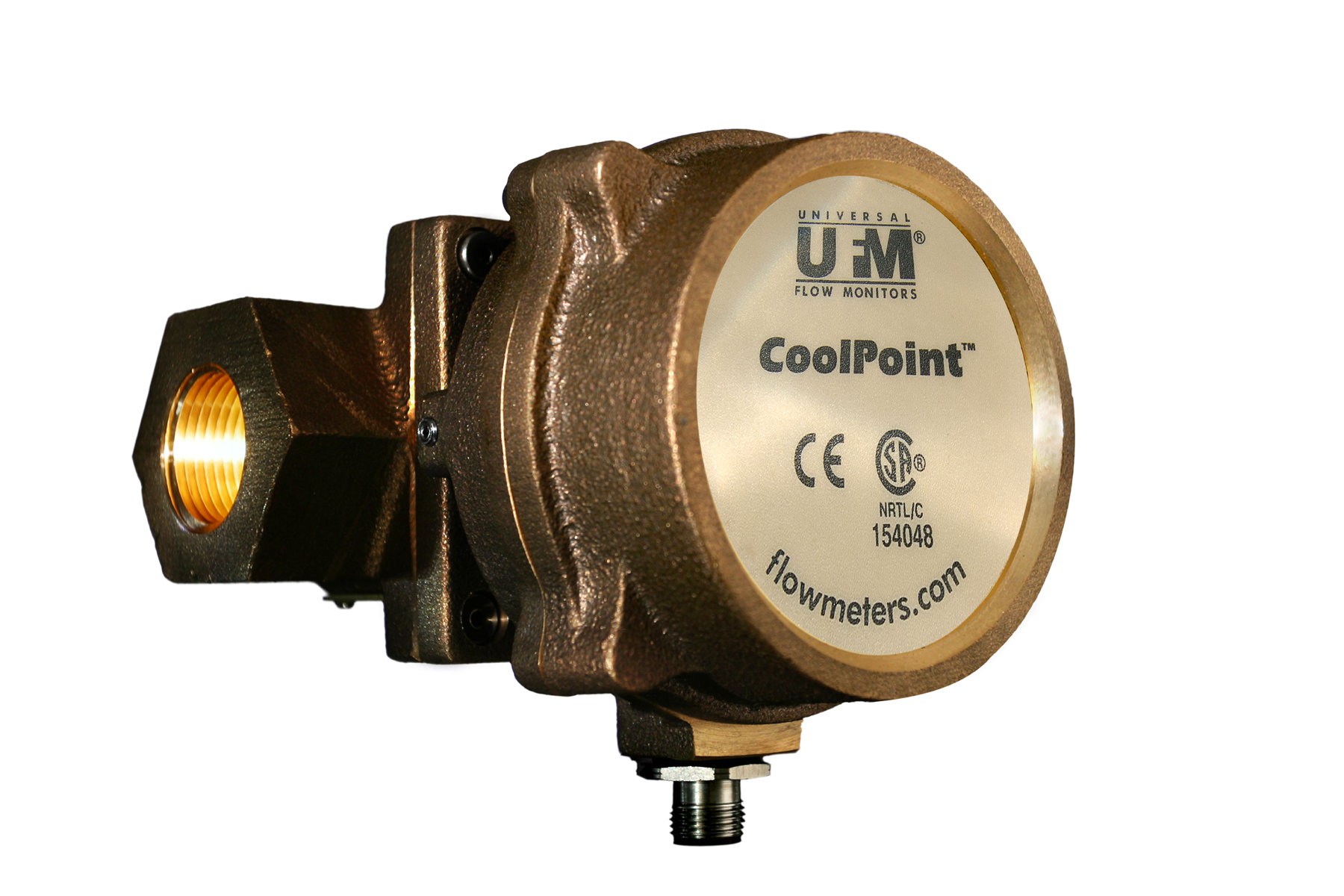

CoolpointJ vortex shedding flowmeters are now available with Intrinsic Safety as an option.
Related To:
Feb. 4, 2013
Aw 14376 1301np Universalflow1

The Intrinsic Safety feature is available on 1/4, ?, 2, 3/4, 1, 12 and 2-inch meters. The transmitter with Intrinsic Safety is a 2 wire 4-20 mA transmitter that has approved barriers and no display, alarm or pulse output. It conforms to requirements for NEC Class I, Division 1, Group D environments. The standard flow rate transmitter is a 4-20 mA 3-wire unit with the following standard feature and user-configurable options: brass body with Viton seals and PVDF sensors, availability in pipe sizes ranging from 1/4 inch to 4 inches, flow repeatability of ±0.25%, ±2% full-scale accuracy at maximum flow, turndown ratio of 10:1, isual 3-digit LED readout, selectable alarm state (N.O. or N.C.), set point or pulse output and engineering unit choice of GPM or LPM.

>>For more information on this product, click here
