Monitor Rotating Equipment 24/7

Jan. 12, 2011

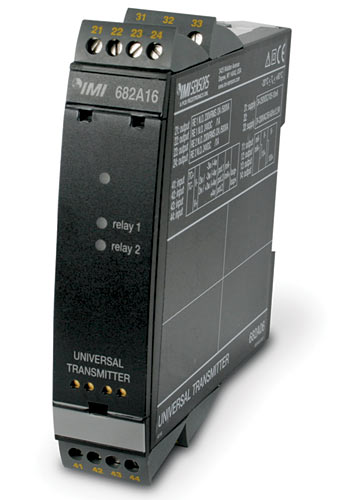

The model 682A16 Universal Transmitter is a DIN-rail-mounted, relay module with optional detachable front panel LCD display and programmer for industrial monitoring, control and alarm requirements.
The 682A16 provides loop power for 2-wire, 4-20mA sensors and ICP excitation for analog 8mV/g to 120mV/g accelerometers. It also accepts a variety of sensor input signals including mA, thermocouple, RTD, linear resistance and potentiometer. Well-suited for 24/7 vibration monitoring of plant and process machinery—including pumps, motors, fans and other critical rotating equipment—the 682A16 can be used with existing PLC, DCS and SCADA systems. IMI Sensorswww.imi-sensors.com 800.959.4464
