M23 Circular Connectors

Oct. 1, 2011

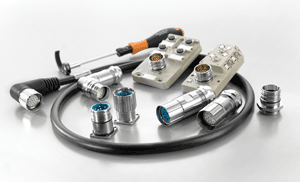

M23 circular connectors are designed for use outside the cabinet in machine and industrial automation applications.
The connector family includes signal connectors ranging from 6- to 19-poles, along with a 6-pole (5 +PE) power version, and a hybrid connector with 4 power contacts and 4 signal contacts. All contacts are gold-plated, guaranteeing over 1,000 mating cycles and currents from 8A-28A at voltages of 100V-800V, depending on the connector. Crimping contacts feature patented SLS Technology (Spring Loaded Socket) for high-level contact stability. Patented Euro-Lock-System features an integrated locking clip that allows for easy assembly and disassembly without the need for special tools. M23 Circular Connectors guarantee ingress protection to IP67 and IP69K, and are CE and UL approved.
