Encoders Fit in Tight Spaces

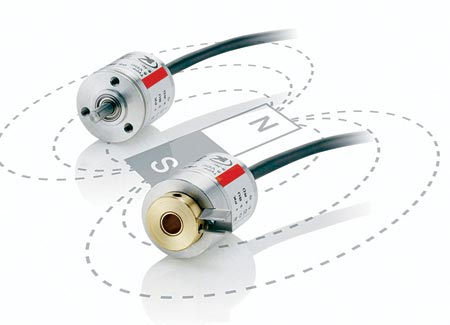

The Kübler 2430 shaft and 2440 hollow shaft incremental magnetic encoders are designed with a miniature 24mm diameter housing and deliver the small footprint required for space-restricted installations, while their non-contact technology is designed to ensure exceptional ruggedness.

Sep 2nd, 2010

Aw 1452 1009 Turck

These encoders offer a wide temperature range, -20°C to 85°C, and a maximum speed rating of 12,000RPM. Though extremely compact, the 2430 and 2440 models are available with radial and axial cable outlets, extending their applicability in space-restricted areas.

Turck Inc.
www.turck.com
800.544.7769
