Loaded Industrial microATX Motherboard

Mar 12th, 2008

Aw 3905 0803 Np25

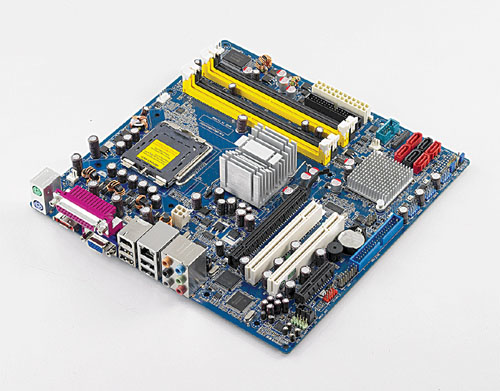

The AIMB-564 is an Intel Q965-based industrial microATX motherboard that supports Intel Core 2 Duo processors and implements Active Management Technology (AMT) that enables remote management. There are seven SATA II drive connections and an eSATA HDD designed with RAID 0, 1, 5, 10 software. The AIMB-564 can handle up to 8GB of dual-channel DDR2 533/667/800MHz memory, with a 1066/800/533MHz FSB. Full support of Windows Vista 64-bit and DirectX 10 make this board ready for enhanced high-end graphics. Also included are one PCIe x16, one PCIe x 4, two PCI slots, ten USB 2.0 ports, one serial port, one parallel port, and two IEEE 1394 connectors. LAN connectivity is covered by one 10/100/1000 Base-T Intel 82566DM gigabit Ethernet port.

Advantech Corp.
Industrial Automation Group

www.eAutomationPro.com/us

800.205.7940
