IP67-Rated Outdoor Edge AI System with NVIDIA Jetson TX2 Module

Jan. 28, 2019

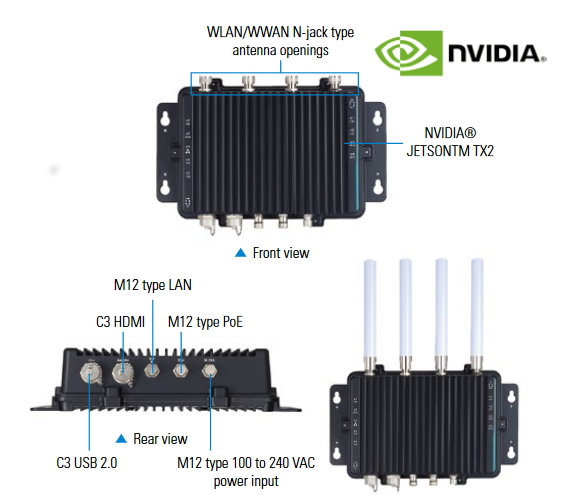

The eBOX800-900-FL artificial intelligence embedded system from Axiomtek has a full IP67-rated extruded aluminum and heavy-duty steel case for dust protection and water resistance.

The AI embedded system comes with an operating temperature range of -30 to 60 °C (-22 to +140 °F) and a vibration endurance for up to 3 Grms. The embedded system is powered by the NVIDIA Jetson TX2 module, which has a 64-bit ARM A57 processor and 256-core NVIDIA Pascal GPU. It features M12 type I/O connectors and four N-jack waterproof antenna openings for operational stability in rugged environments. The unit is suitable for AI edge computing and deep learning applications, such as smart city, smart manufacturing, smart transportation, and more. It has 8GB of LPDDR4 memory and 32GB eMMC onboard and a 100 to 240 VAC power input with 10 kV surge protection. The computer also features one M.2 SSD PCIe 2.0 x4 socket that supports high-performance NVM Express interface for extensive storage needs. It is equipped with a PoE port to support IP cameras or any PoE device, and supports one C3 USB 2.0 port, one M12 X-coded Gigabit LAN port, one M12 X-coded Gigabit PoE port, and one C3 HDMI port supporting full HD. Its four N-jack type antenna connectors feature a water-proof design for WLAN and WWAN usage. It has a PCI Express Mini Card slot for 3G/4G/LTE/GPRS connections. Mounting options include wall mount and VESA mount. It has passed the strict certification with CE and FCC Class A.

>>For more information on this product, click here
Axiomtek
us.axiomtek.com
626.581.3232
