The dual encoders are incorporated in essentially the same package size as the long-standing FHA-C mini single incremental encoder version. Without increasing the size, the dual absolute encoder offers single turn absolute position at the output, without the need for battery back-up. Panel mount connectors come standard, and users can choose among four exit options. The actuator combines a high precision harmonic drive gear component with a pancake brushless servo motor. A single-turn 14 bit (16384 cpr) gear output encoder has been integrated along with a single turn 14 bit (16384 cpr) motor input encoder, providing a true absolute encoder that does not require a battery within 360° of rotation of the output. Typical multi-turn encoders monitoring the motor input shaft require a battery to store the current position when power is lost to the system; however, the dual absolute encoder overcomes this need. When power is restored the actuator knows its position. Features include zero backlash; choice of incremental, absolute, or dual absolute encoder and high-torque/weight and torque/volume ratio. Flex-rated cables with sealed connectors are optional.

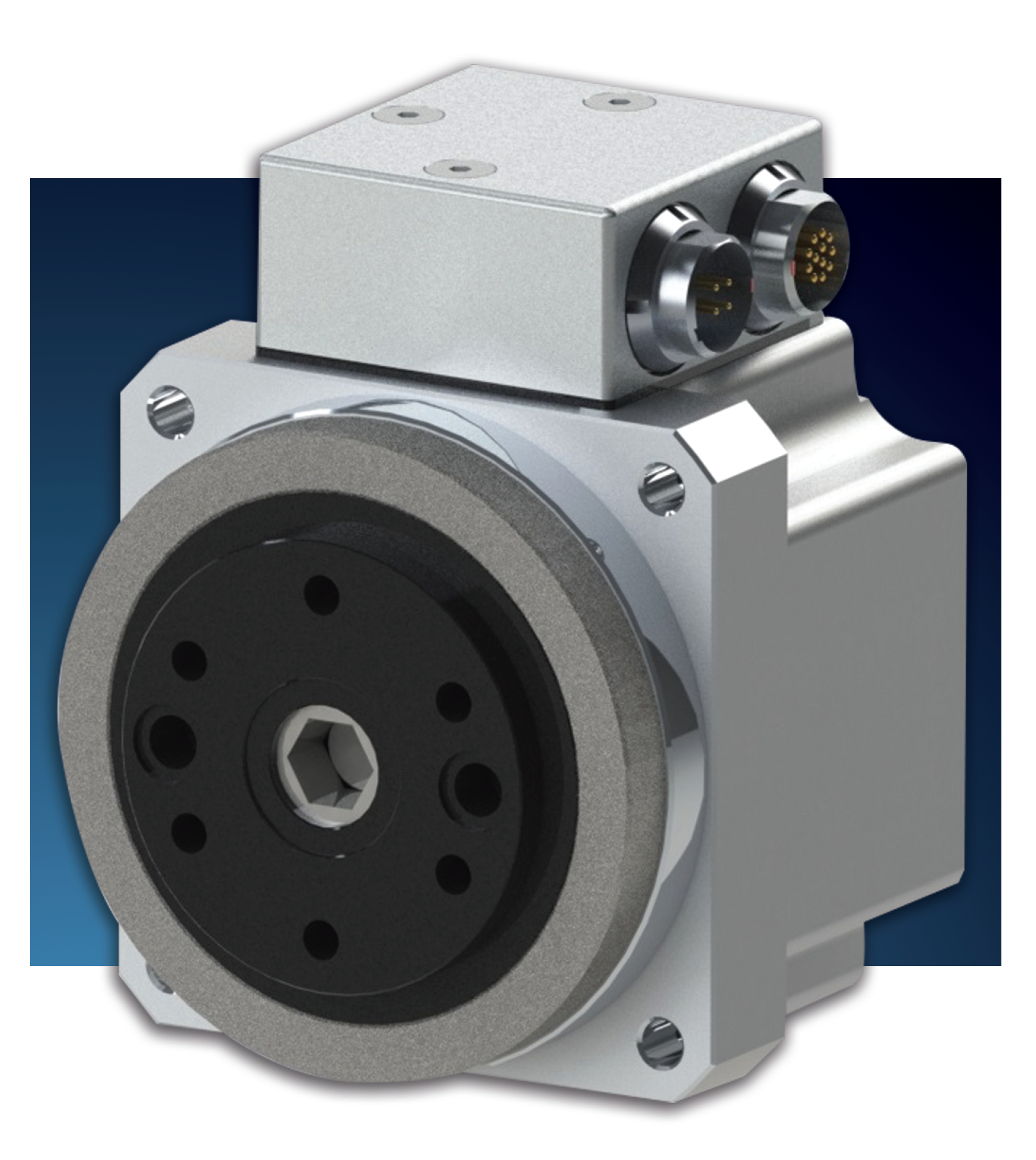

Mini 24 V Servo Actuator with Dual Absolute Encoder and Panel Mount Connectors
Mini 24 V Servo Actuator with Dual Absolute Encoder and Panel Mount Connectors Dual Absolute encoder versions of the FHA-C from Electromate feature BiSS-C bi-directional communication for both encoders.
Aug 8th, 2019
