Advantech Launches UNO-430 All-Around Waterproof Edge Intelligence Gateway for Industrial Applications

This content was submitted directly to this website by the supplier.

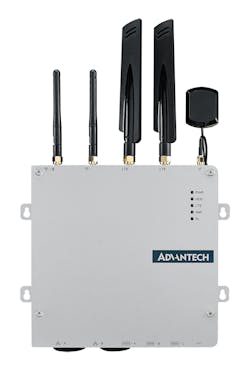

Uno 430 Front 3m

Advantech, a leading provider of embedded computing solutions, is pleased to announce its UNO-430 rugged, waterproof edge intelligence gateway.

Designed for use in harsh industrial environments, UNO-430 features all-around IP69K/68-rated ingress protection and M32 and M12 I/O connectors to provide a truly watertight solution that can withstand the most demanding applications. The waterproof enclosure features a front door for easy access and maintenance as well as a cable gland that offers further ingress protection, reducing the need for waterproof cables and wiring. This comprehensive protection also eliminates the need for a waterproof cabinet, allowing customers to use the UNO-430 gateway as a standalone data acquisition gateway. Moreover, with the provision of standard M.2 2230 Wi-Fi and M.2 3052/3042 5G/LTE sockets, the UNO-430 gateway offers expandable wireless connectivity for remote communications and data transfers. To ensure flexible and convenient deployment in diverse usage scenarios, UNO-430 also supports a wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F) and input voltage (10 ~ 36 VDC), making it suitable for general outdoor and indoor installations, including at the roadside and in manufacturing sites.

Rugged Design with All-Around IP69K/68-Rated Protection
Advantech’s UNO-430 is built to provide a tough high-performance intelligence gateway that can be employed in harsh industrial environments. To ensure optimal operation under extreme conditions, the gateway is IP69K/68 rated for resistance to water and dust ingress. The IP69K rating indicates that UNO-430 can withstand high-pressure and high-temperature wash-downs and steam-cleaning, while the IP68 rating indicates the ability to withstand immersion in water under pressure for long periods, providing sufficient protection in case of exposure to chemicals or bad weather.

Cable Gland Design for Easy Maintenance and Waterproofing
UNO-430 is equipped with a cable gland that ensures the protection of electrical equipment by sealing the outer cable sheath and excluding dust and moisture from the enclosure. Additionally, the provision of a cable gland allows customers to use standard cables, providing they can fit into the cable gland. Compared to traditional waterproofing design that requires a pin-to-pin connection to integrate hardware, a cable gland offers greater ease-of-installation and more flexibility for configuration.

Wireless Connectivity for Remote Communications and Mobile Operation
With the provision of standard M.2 2230 Wi-Fi and M.2 3052/3042 5G/LTE sockets for integrating Wi-Fi/5G/LTE modules, UNO-430 supports expanding wireless communication for remote data transfers and management. Additionally, customers no longer need to install extensive wiring and lengthy cables around a work site, making the UNO-430 gateway ideal for industries with large-scale factories and outdoor equipment.

Key Features

  • Intel® Atom® E3950 processor with 8 GB DDR3L memory
  • Wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F) ·
  • IP69K/68 rating for superior protection from water and dust
  • 2 x Gigabit Ethernet, 2 x RS-422/485, 1 x RS-232, and 1 x SIM card slot
  • Built-in TPM 2.0 for hardware-based security
  • 1 x M.2 (B key) socket for storage
  • 1 x M.2 (B key) socket for 5G/LTE module
  • 1 x M.2 (E key) socket for Wi-Fi module
  • Supports Windows 10 LTSC 2019 and AdvLinux operating systems

Advantech’s UNO-430 waterproof edge intelligence gateway is available for order now. To obtain more information about this or other Advantech products, contact your local sales support team or visit our website at www.advantech.com.
