Utility-Scale Inverter for Wind and Solar Applications

April 5, 2012
Four-quadrant features high efficiency and low-voltage ride through.

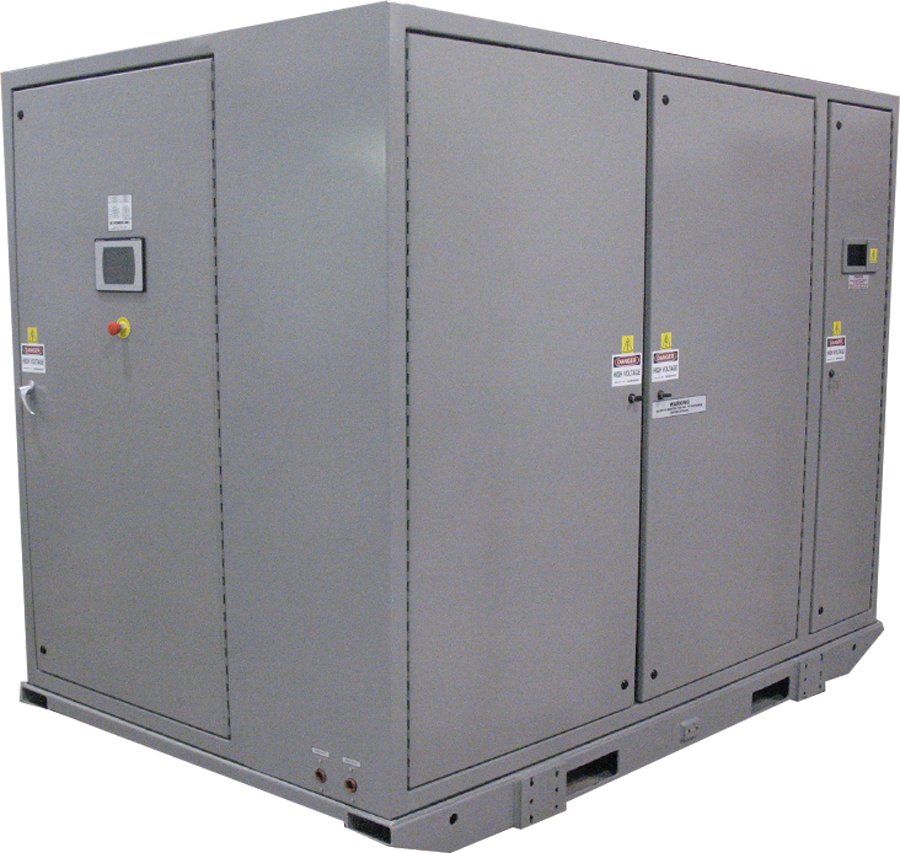

The Series 6001 provides conversion in utility applications for wind, solar and other heavy industrial power applications by creating a link between the power source and battery. It helps utilities reduce downtime and clear faults faster by staying on line during fault conditions. True low-voltage ride through with proprietary algorithms enables the inverter to run near zero line voltage for extended periods, while maintaining line synchronization. Additionally, high-voltage ride through capability is achieved through conservatively rated components. Ride through capabilities meet the requirements of the FERC, BDEW and E-ION. Engineered for utility-scale grid-connect battery applications, the inverter is designed to allow customers to achieve full battery storage potential because of a large DC operating voltage window. The enclosure is designed to meet a seismic zone 4 rating and is available as indoor or outdoor rated. The dust-tight section protects the liquid-cooled inverter and electronics control components from harsh and dusty environments. Additionally, a vented section houses air-cooled magnetics. Units are available with ratings of 500 kW, 1000 kW and 1500 kW. The transformerless design, proprietary control strategies and filter design result in over 98 percent peak power efficiency.
For more information on this product click here
Eaton Corporation
www.eaton.com
877.386.2273
